Americas Preferred Supplier of Trash and Linen Chutes and Chute Systems
Why Choose American Chute?
- The Best Quality, Delivery, and Service.
- Over 75 Years Manufacturing Experience.
- We Focus on the Needs of our Customers.
- World Class Quality and Competitive Pricing.
- Call us today to speak with an expert.
PDF download of our completed projects: American Chute Project Portfolio
Our Mission Statement
American Chute, LLC. will consistently exceed our customer’s expectations by providing innovative design solutions and manufacturing the highest quality chute systems available. We deliver our products where and when promised, and are always available to service our customer’s needs.

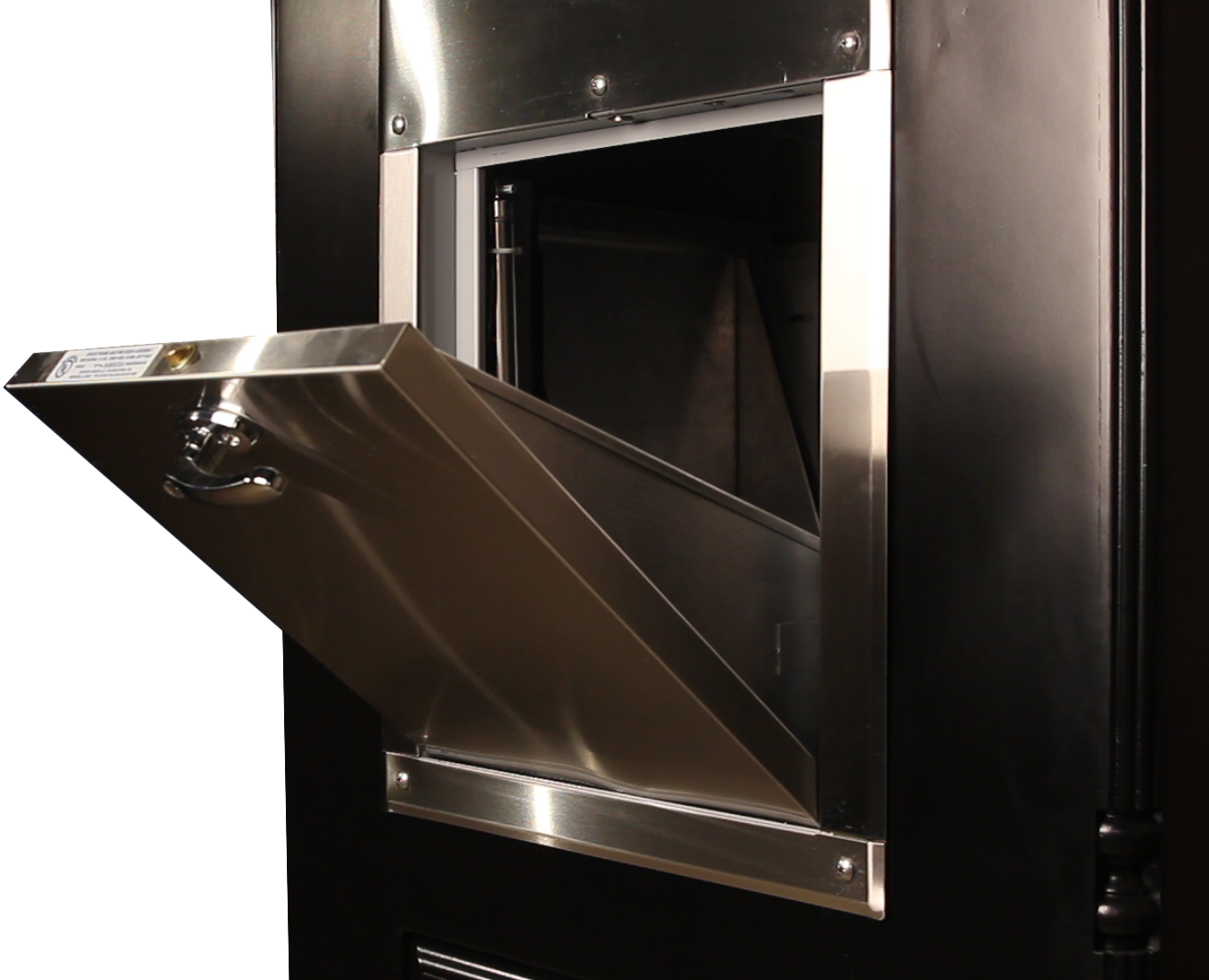

Easy-Wave® & Easy-Push®
the ONLY UL® Listed Electric Interlocking Chute System in the industry.

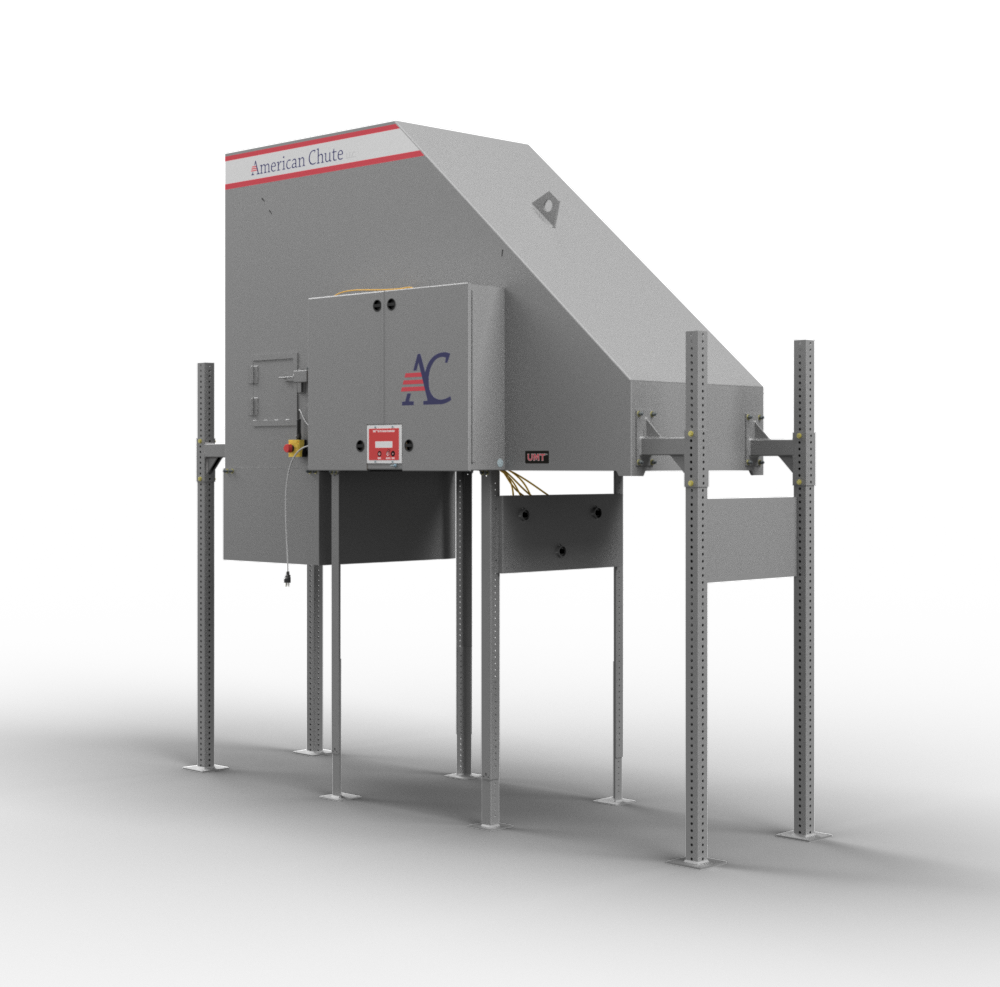

Bi-Sorter and Tri-Sorter Systems
The UMT™ 200 & 300 Series 24” diameter Bi-Sorter & Tri Sorter was designed for multi-story buildings that wish to sort recyclables away from the buildings trash with a single chute system.
The UMT™ 200 & 300 Series 24” diameter Bi-Sorter & Tri-Sorter is installed below the buildings trash chute which will then allow the sorting mechanism to divert trash to a compactor or container and recyclables to a dedicated container. The diverter is controlled at each intake floor. The user selects the desired sorting type with the push button. If the sorter system is installed with our Easy-Wave® interlock system the selection buttons will be integral with the system.

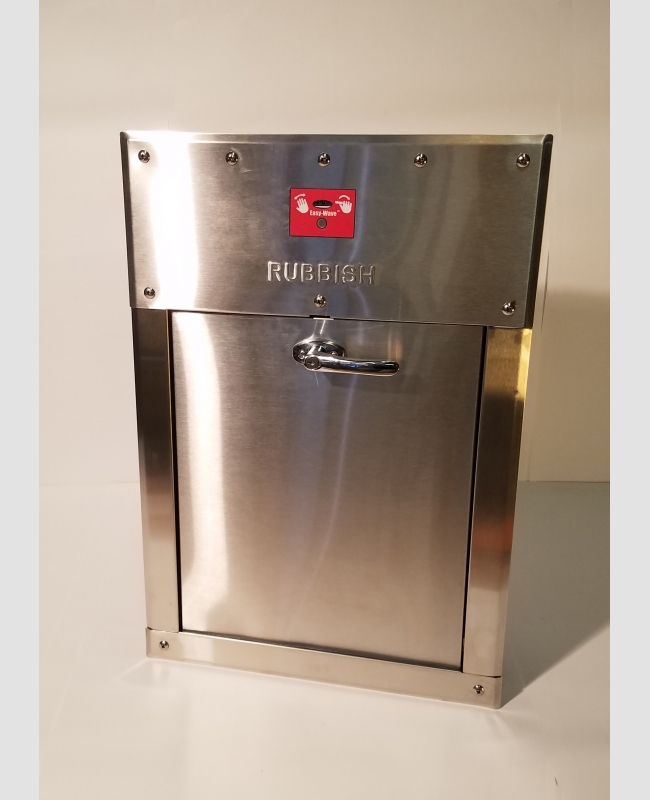

Click Here To Read MoreEasy-Wave® Doors
Below are detailed specifications of our available Easy-Wave® doors.
Contact Us for detailed specifications.
Trash Chute Intake Doors: Actual Door Dimensions
| BH Manual Doors | ||||
| Item ID | Nominal | Chute Opening | Wall Opening | Trim |
|---|---|---|---|---|
| 1215BH 1518BH 1818BH 2118BH 2121BH 2424BH |
12" x 15" 15" x 18" 18" x 18" 21" x 18" 21" x 21" 24" x 24" |
121⁄4" x 161⁄2" 151⁄4" x 191⁄2" 181⁄4" x 191⁄2" 211⁄4" x 191⁄2" 211⁄4" x 221⁄2" 241⁄4" x 251⁄2" |
121⁄2" x 163⁄4" 151⁄2" x 193⁄4" 181⁄2" x 193⁄4" 211⁄2" x 193⁄4" 211⁄2" x 223⁄4" 241⁄2" x 253⁄4" |
16" x 19" 19" x 22" 22" x 22" 25" x 22" 25" x 25" 28" x 28" |
| BH IL Doors | ||||
| Item ID | Nominal | Chute Opening | Wall Opening | Trim |
| 1215BEI 1518BEI 1818BEI 2118BEI 2121BEI 2424BEI |
12" x 15" 15" x 18" 18" x 18" 21" x 18" 21" x 21" 24" x 24" |
121⁄4" x 161⁄2" 151⁄4" x 191⁄2" 181⁄4" x 191⁄2" 211⁄4" x 191⁄2" 211⁄4" x 221⁄2" 241⁄4" x 251⁄2" |
121⁄2" x 231⁄4" 151⁄2" x 261⁄4" 181⁄2" x 261⁄4" 211⁄2" x 261⁄4" 211⁄2" x 291⁄4" 241⁄2" x 321⁄4" |
16" x 245⁄8" 19" x 275⁄8" 22" x 275⁄8" 25" x 275⁄8" 25" x 305⁄8" 28" x 335⁄8" |
| BH Pneumatic Doors | ||||
| Item ID | Nominal | Chute Opening | Wall Opening | Trim |
| 1518BPEI 1818BPEI 2118BPEI 2121BPEI |
15" x 18" 18" x 18" 21" x 18" 21" x 21" |
151⁄4" x 191⁄2" 181⁄4" x 191⁄2" 211⁄4" x 191⁄2" 211⁄4" x 221⁄2" |
151⁄2" x 273⁄8" 181⁄2" x 273⁄8" 211⁄2" x 273⁄8" 211⁄2" x 303⁄8" |
19" x 275⁄8" 22" x 275⁄8" 25" x 275⁄8" 25" x 305⁄8" |
Linen Chute Intake Doors: Actual Door Dimensions
| SH Manual Doors | ||||
| Item ID | Nominal | Chute Opening | Wall Opening | Trim |
|---|---|---|---|---|
| 1515S 1519S 1818S 2121S 2424S |
15" x 151⁄4" 15" x 191⁄4" 18" x 181⁄4" 21" x 211⁄4" 24" x 241⁄4" |
151⁄4" x 151⁄4" 151⁄4" x 191⁄4" 181⁄4" x 181⁄4" 211⁄4" x 211⁄4" 241⁄4" x 241⁄4" |
151⁄2" x 151⁄2" 151⁄2" x 191⁄2" 181⁄2" x 181⁄2" 211⁄2" x 211⁄2" 241⁄2" x 241⁄2" |
19" x 19" 19" x 23" 22" x 22" 25" x 25" 28" x 28" |
| SH IL Doors | ||||
| Item ID | Nominal | Chute Opening | Wall Opening | Trim |
| 1515SEI RH 1519SEI RH 1818SEI RH 2121SEI RH 2424SEI RH |
15" x 15" 15" x 19" 18" x 18" 21" x 21" 24" x 24" |
151⁄4" x 151⁄4" 151⁄4" x 191⁄4" 181⁄4" x 181⁄4" 211⁄4" x 211⁄4" 241⁄4" x 241⁄4" |
151⁄2" x 211⁄4" 151⁄2" x 251⁄4" 181⁄2" x 241⁄4" 211⁄2" x 271⁄4" 241⁄2" x 301⁄4" |
19" x 251⁄4" 19" x 291⁄4" 22" x 281⁄4" 25" x 311⁄4" 28" x 341⁄4" |
| 1515SEI LH 1519SEI LH 1818SEI LH 2121SEI LH 2424SEI LH |
15" x 15" 15" x 19" 18" x 18" 21" x 21" 24" x 24" |
151⁄4" x 151⁄4" 151⁄4" x 191⁄4" 181⁄4" x 181⁄4" 211⁄4" x 211⁄4" 241⁄4" x 241⁄4" |
151⁄2" x 211⁄4" 151⁄2" x 251⁄4" 181⁄2" x 241⁄4" 211⁄2" x 271⁄4" 241⁄2" x 301⁄4" |
19" x 251⁄4" 19" x 291⁄4" 22" x 281⁄4" 25" x 311⁄4" 28" x 341⁄4" |
Replacement Doors
Below are detailed specifications of our available replacement doors.
Contacts Us for detailed specifications.
Trash Chute Intake Doors: Actual Door Dimensions
| American Chute, LLC. Series | |||
| Item ID | Chute Opening | Wall Opening | Trim (Outside) |
|---|---|---|---|
| BH1518 BH1818 BH2118 |
151⁄4" x 191⁄2" 181⁄4" x 191⁄2" 211⁄4" x 191⁄2" |
151⁄2" x 193⁄4" 181⁄2" x 193⁄4" 211⁄2" x 193⁄4" |
19" x 22" 22" x 22" 25" x 22" |
| Universal Series | |||
| Item ID | Chute Opening | Wall Opening | Trim (Outside) |
| BHU1518 BHU1818 BHU2118 |
141⁄2" x 171⁄2" 171⁄2" x 171⁄2" 201⁄2" x 171⁄2" |
143⁄4" x 173⁄4" 173⁄4" x 173⁄4" 203⁄4" x 173⁄4" |
181⁄4" x 20" 211⁄4" x 20" 241⁄4" x 20" |
| Signature Series | |||
| Item ID | Chute Opening | Wall Opening | Trim (Outside) |
| WBH1518 WBH1818 WBH2118 |
151⁄2" x 193⁄4" 181⁄2" x 193⁄4" 211⁄2" x 193⁄4" |
171⁄4" x 197⁄8" 201⁄4" x 197⁄8" 211⁄4" x 197⁄8" |
19" x 22" 22" x 22" 25" x 22" |
Linen Chute Intake Doors: Actual Door Dimensions
| American Chute, LLC. Series | |||
| Item ID | Chute Opening | Wall Opening | Trim (Outside) |
|---|---|---|---|
| BH1518 BH1818 BH2118 |
151⁄4" x 191⁄2" 181⁄4" x 191⁄2" 211⁄4" x 191⁄2" |
151⁄2" x 193⁄4" 181⁄2" x 193⁄4" 211⁄2" x 193⁄4" |
19" x 22" 22" x 22" 25" x 22" |
| Universal Series | |||
| Item ID | Chute Opening | Wall Opening | Trim (Outside) |
| LSU1818 LSU2121 LSU2424 |
171⁄2" x 171⁄2" 201⁄2" x 201⁄2" 231⁄2" x 231⁄2" |
173⁄4" x 173⁄4" 203⁄4" x 203⁄4" 233⁄4" x 233⁄4" |
211⁄8" x 211⁄8" 241⁄8" x 241⁄8" 261⁄8" x 261⁄8" |
| Signature Series | |||
| Item ID | Chute Opening | Wall Opening | Trim (Outside) |
| WLS1818 WLS2121 WLS2424 |
181⁄4" x 181⁄4" 211⁄4" x 211⁄4" 241⁄4" x 241⁄4" |
181⁄2" x 181⁄2" 181⁄2" x 181⁄2" 181⁄2" x 181⁄2" |
22" x 22" 25" x 25" 27" x 27" |

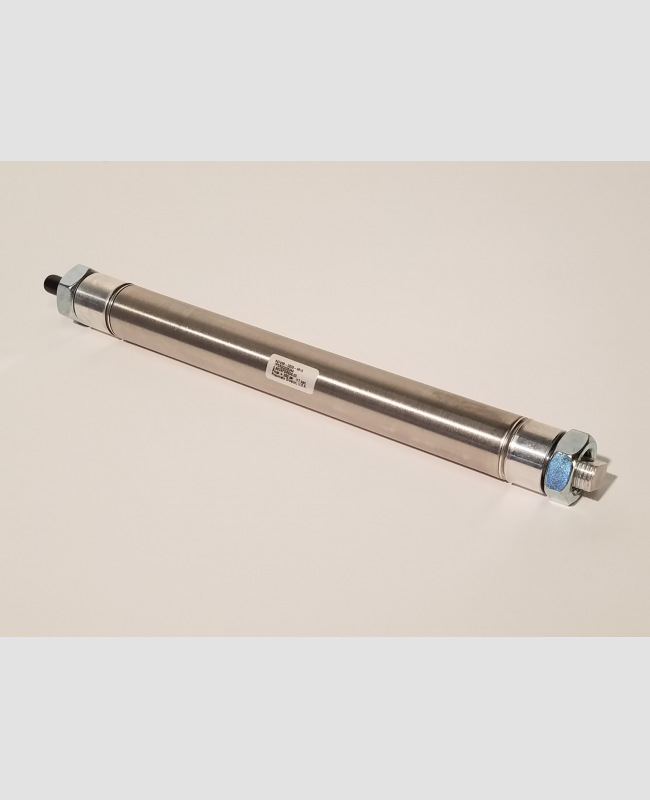

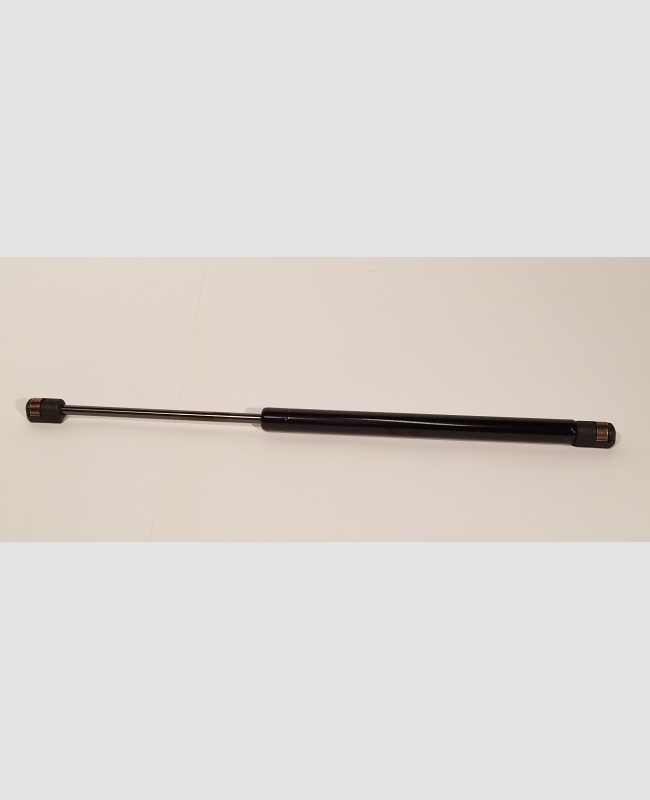

C1620
Pneumatic Cylinder
Read More
BPEI-KIT-1
Pneumatic Cylinder
Read More
C1623
Pneumatic Cylinder
Read More
30059
Replacement Parts
Read More

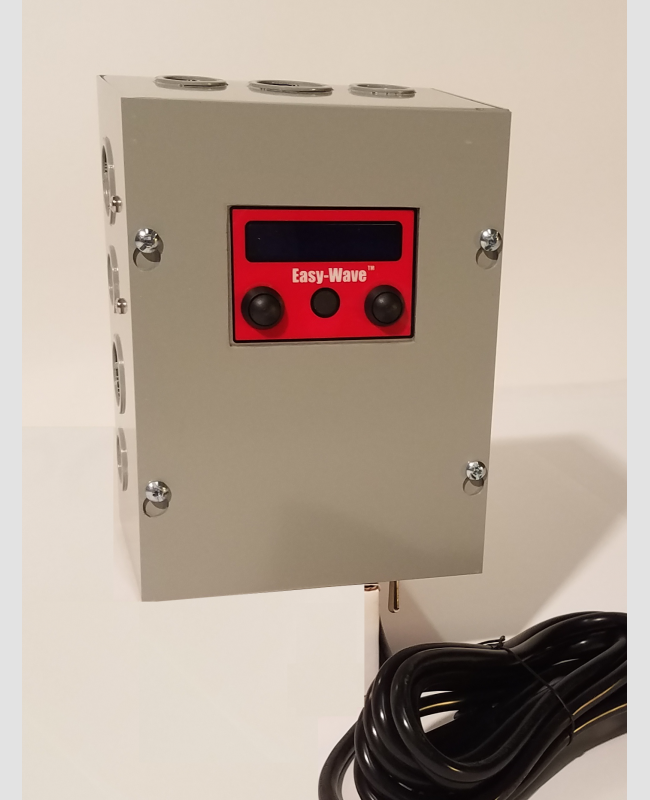

30045
Easy-Wave
Read More
C1681
Replacement Parts
Read More

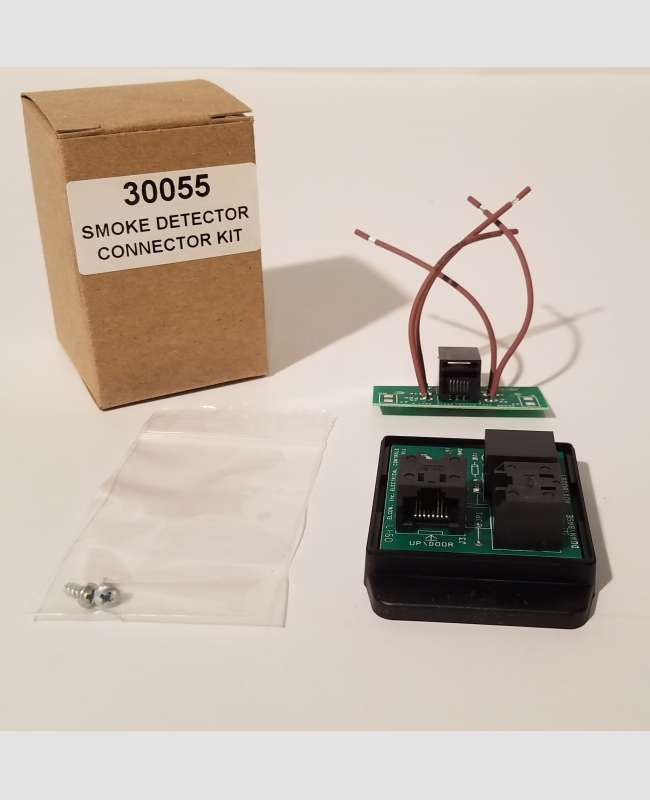

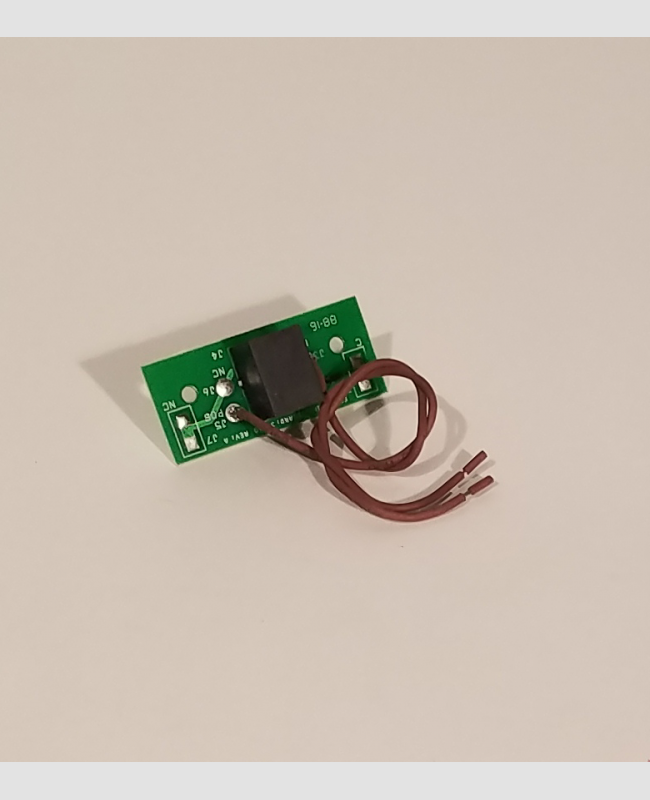

30055
EASY WAVE HRD MAGNET CONNECTOR KIT
Read More

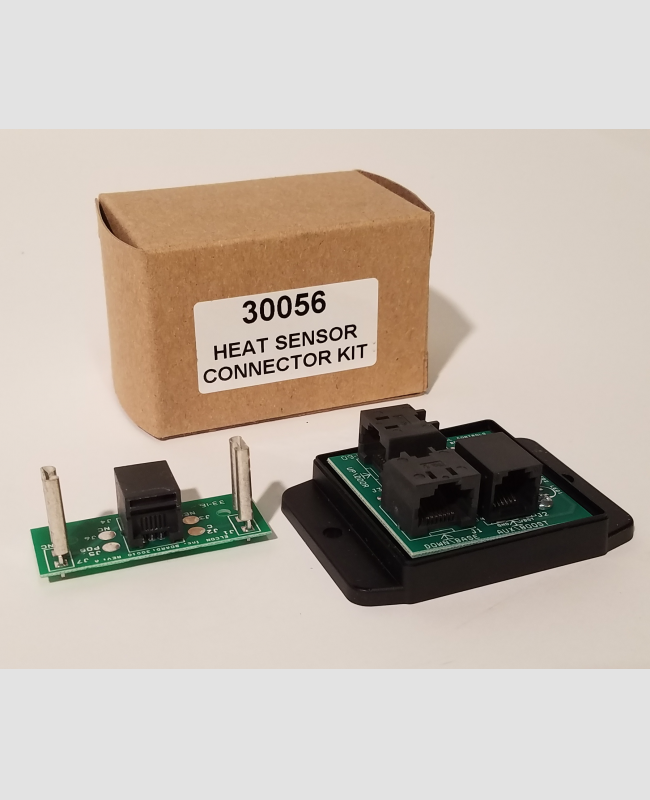

30056
EASY WAVE SMOKE DETECTOR CONNECTOR KIT
Read More

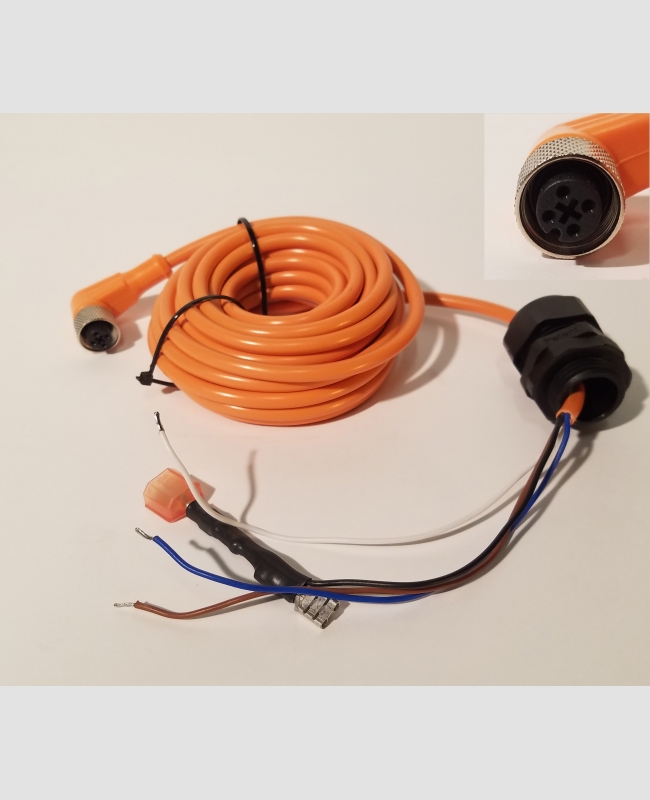

30171
Wiring
Read More
PL-0001-F
Parts
Read More
30057
Replacement Parts
Read More
C4009
Replacement Parts
Read More

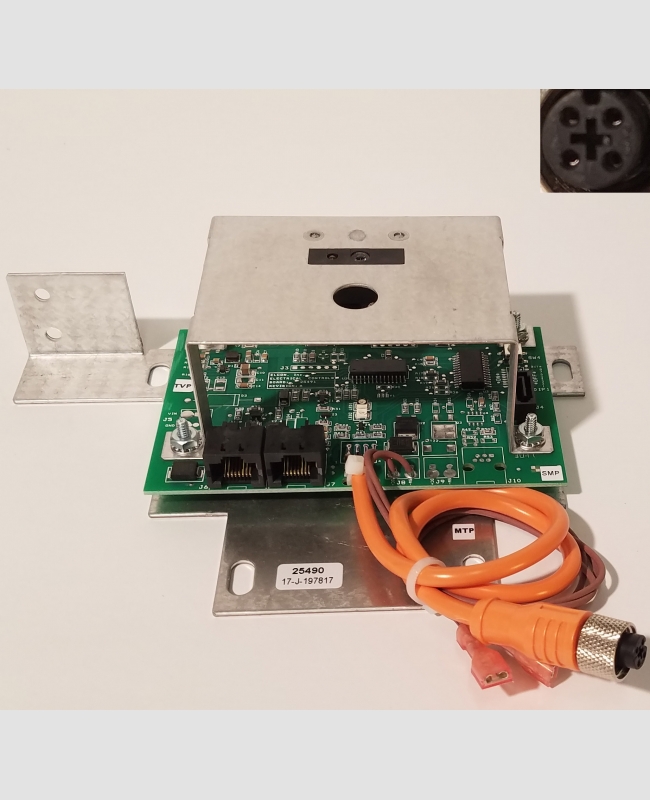

25490
Replacement Parts
Read More

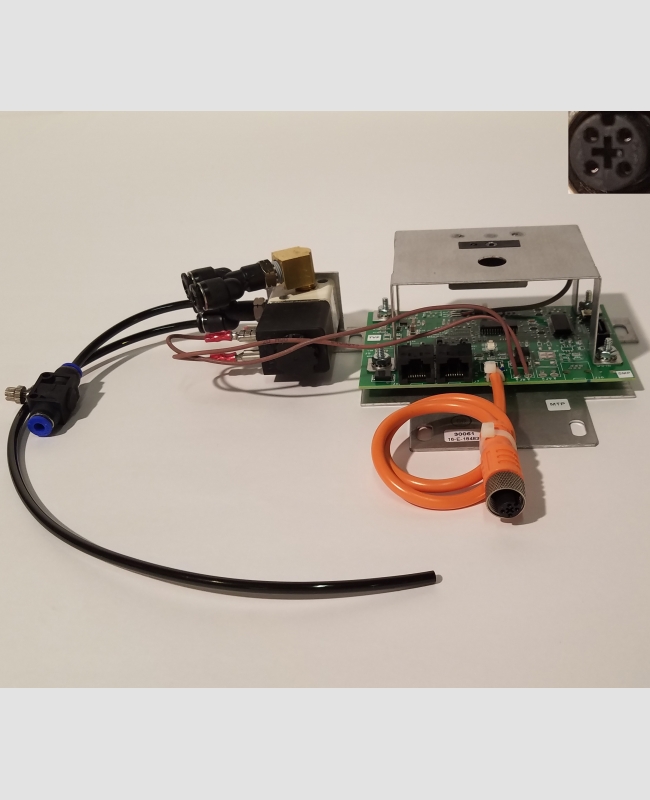

30061
Replacement Parts
Read More

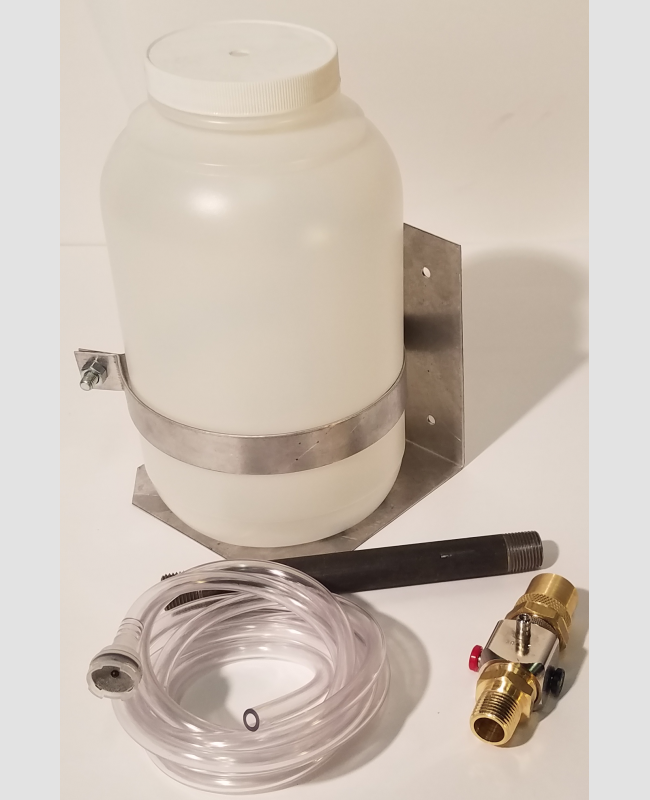

SAN-KIT
Replacement Parts
Read More

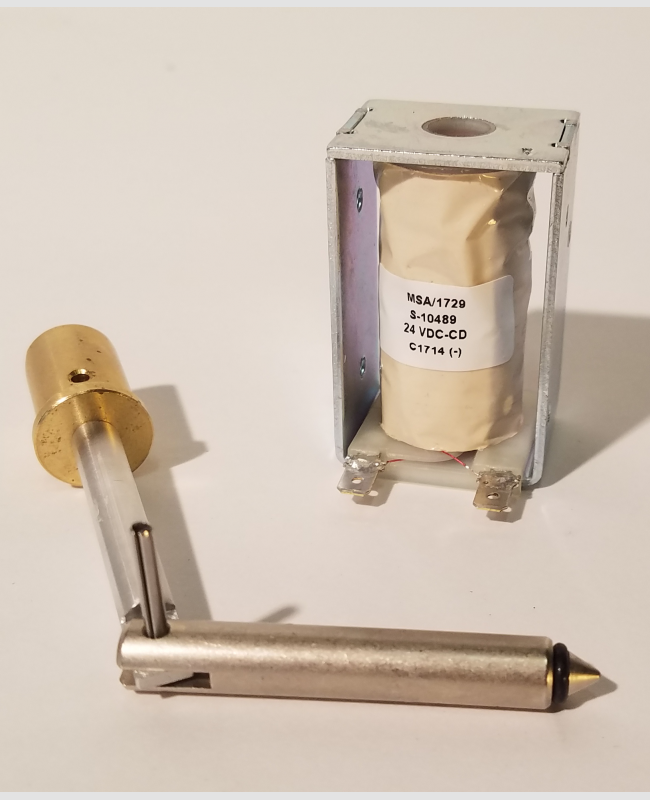

SOLENOID
Replacement Parts
Read More
1518-BEI-ADA
Chute Doors
Read More
CP-24-F
Replacement Parts
Read More

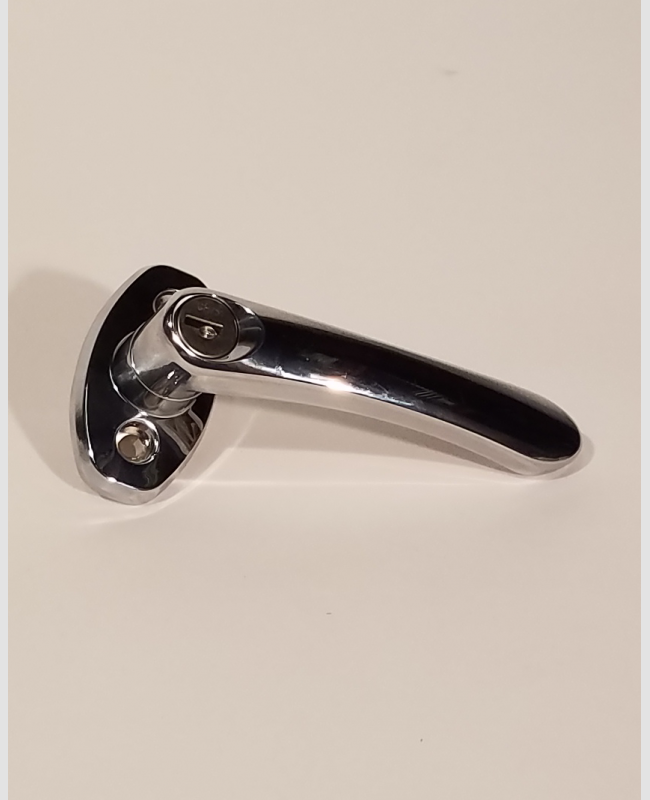

ADA-LEVER-HANDLE
Replacement Parts
Read More

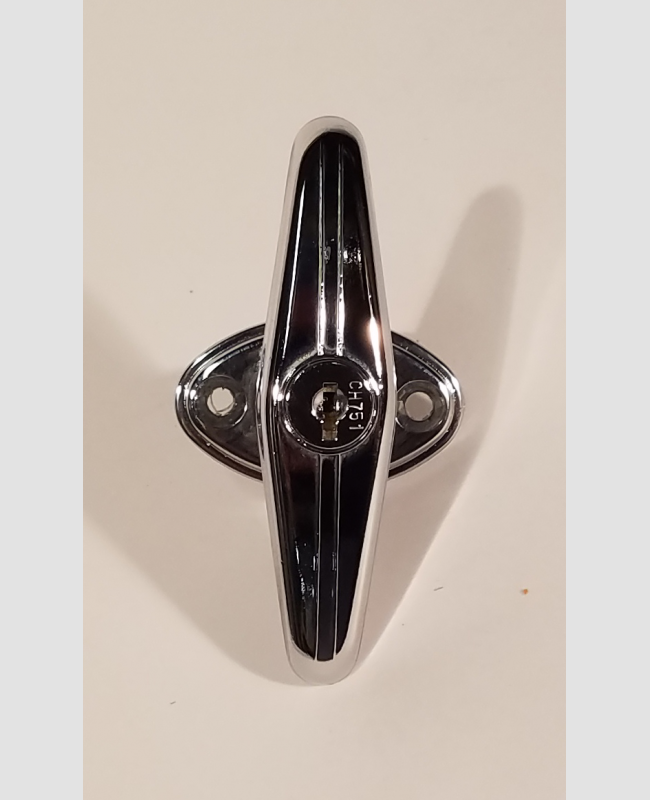

TEE-HANDLE
Replacement Parts
Read More

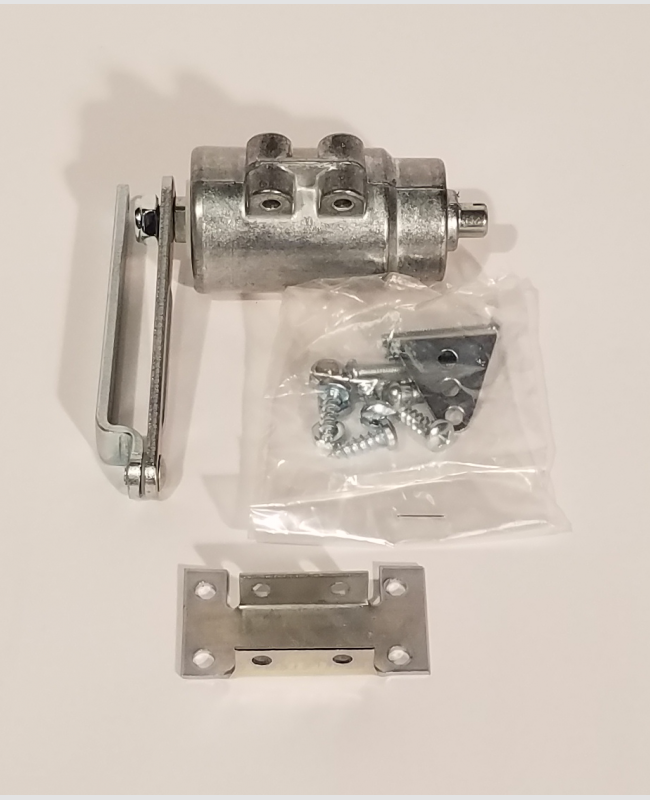

28LB-CLOSER
Replacement Parts
Read More
ADA-CLOSER
Replacement Parts
Read More
ROTO-CLOSER
Replacement Parts
Read More
30092
EASY WAVE HRD MAGNET CONNECTOR KIT
Read More

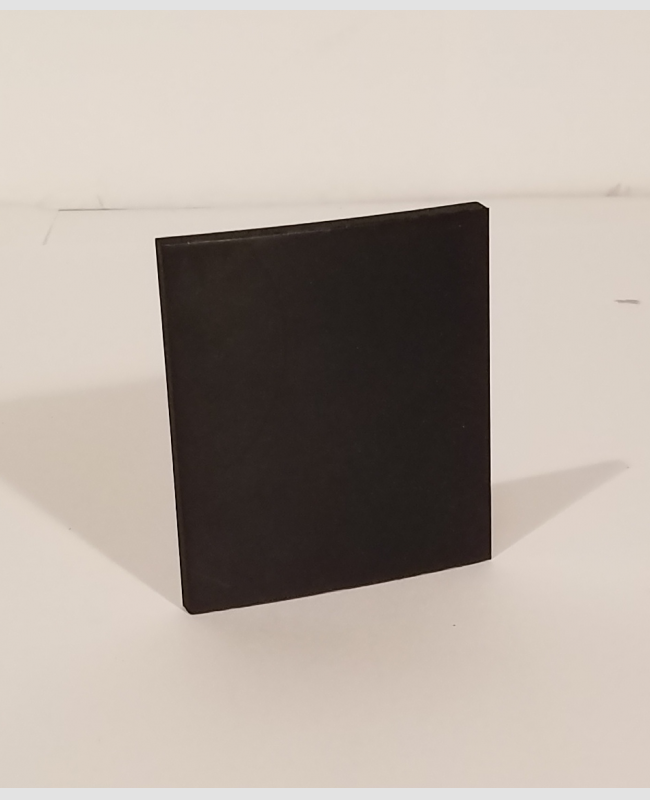

ISO-PAD-NEOPR
1/4" NEOPRENE ISO PAD
Read More

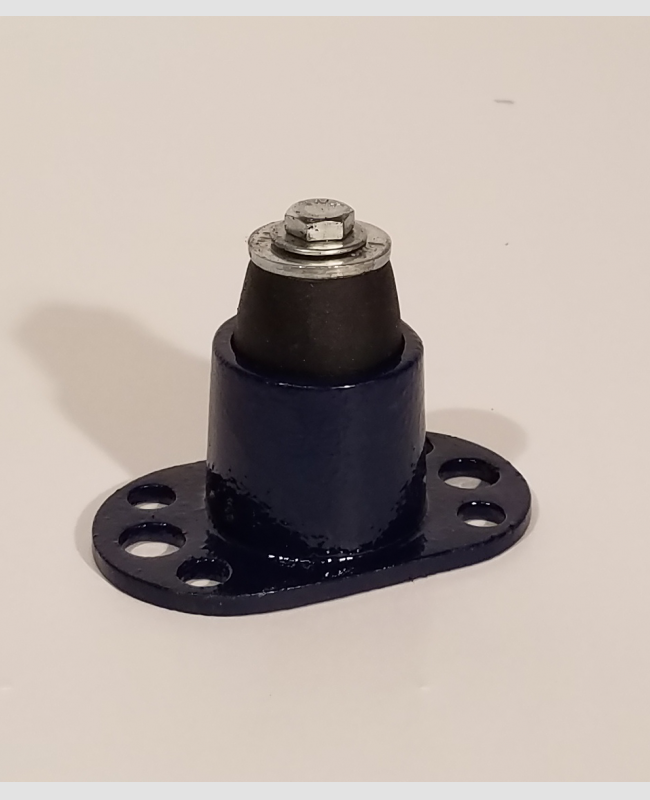

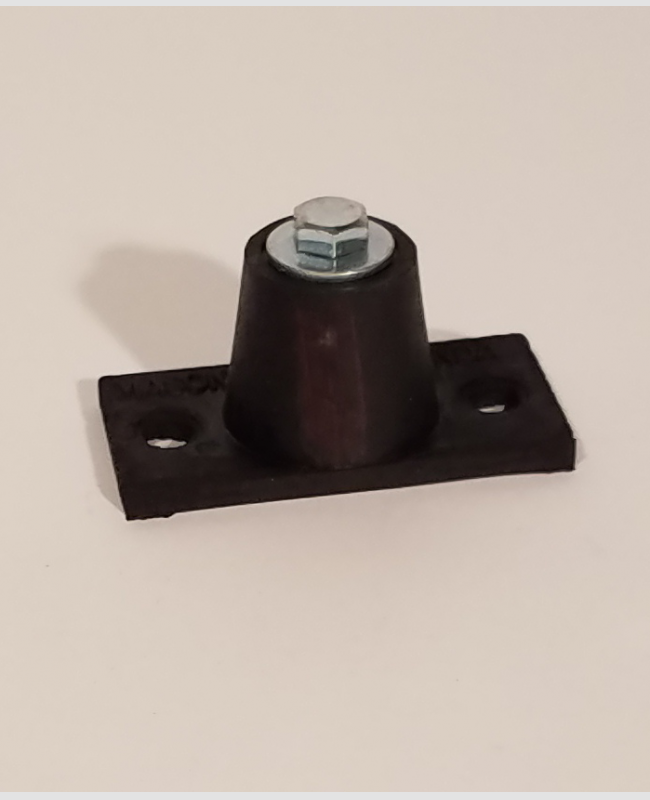

MASON BRA RED ISOL
MASON BR-A RED ISOLATOR
Read More

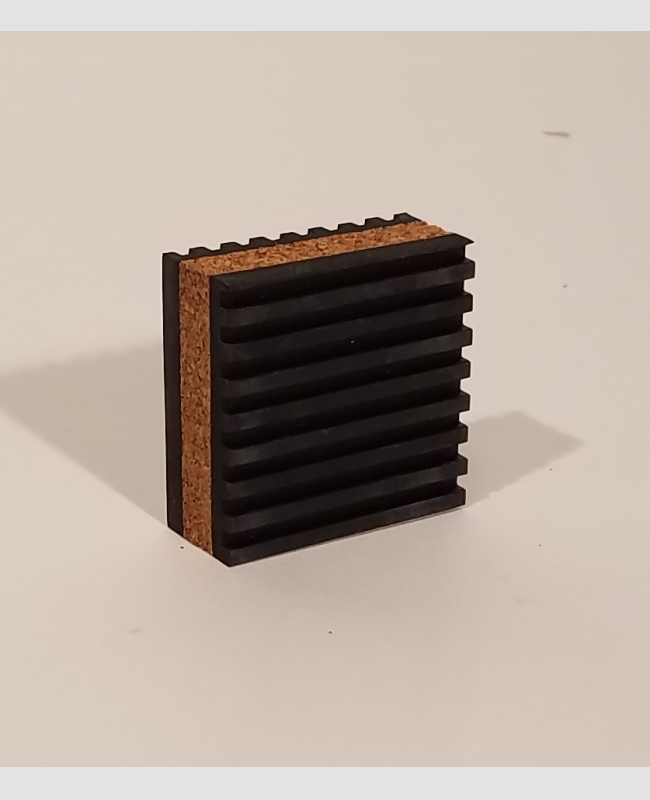

NEOPR-CORK-PAD
KORFUND ISO PAD
Read More

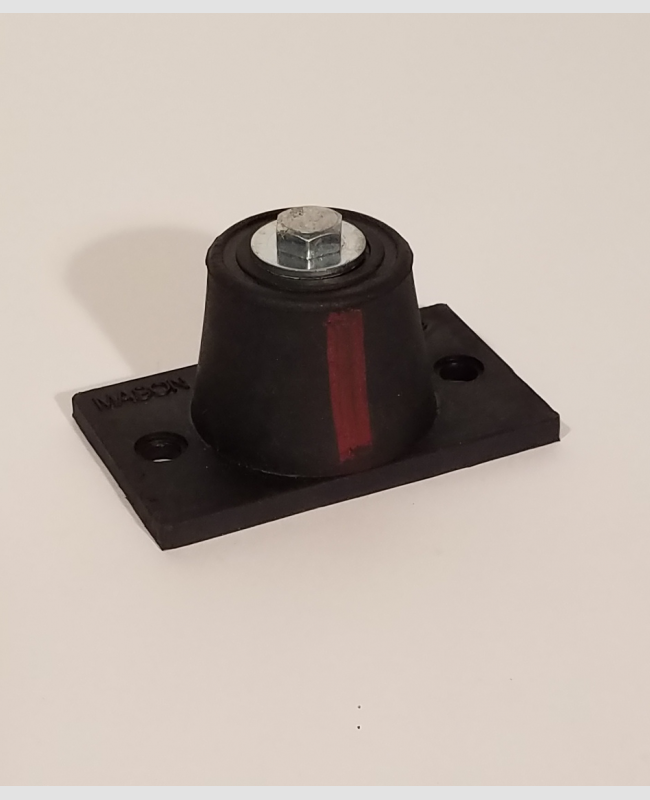

MASON ND B RED ISO
MASON ND-B RED ISO
Read More
AC-222G-ISOL
AC-222G ISO PAD
Read More

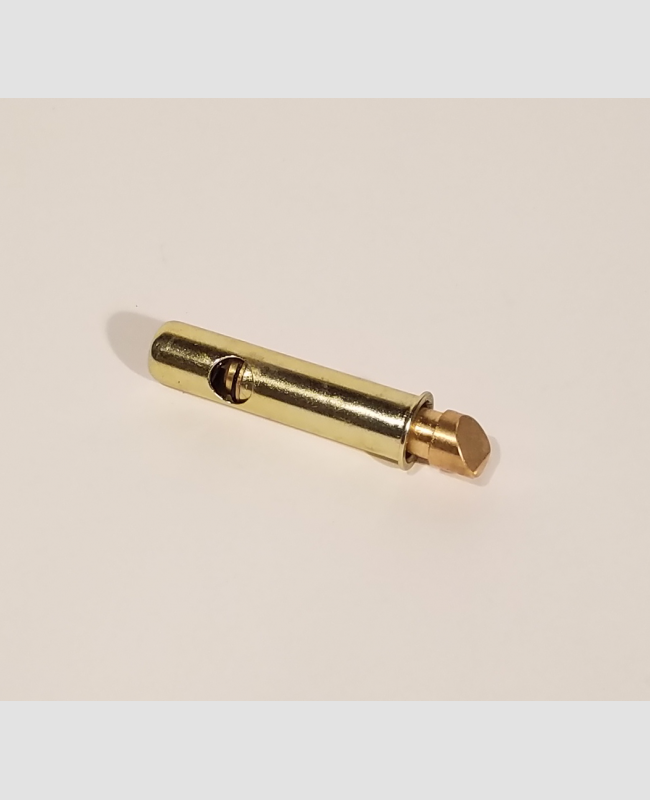

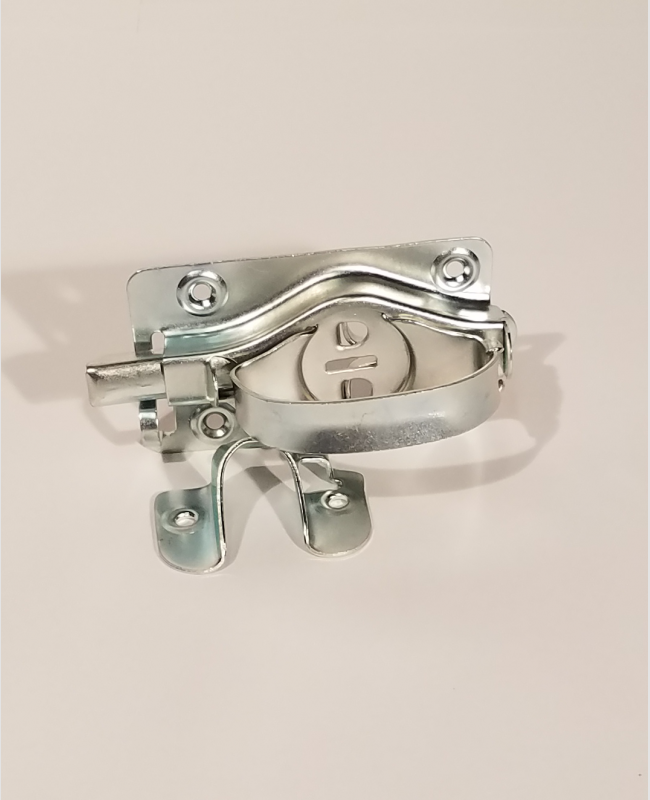

DOOR-LATCH
Replacement Parts
Read More

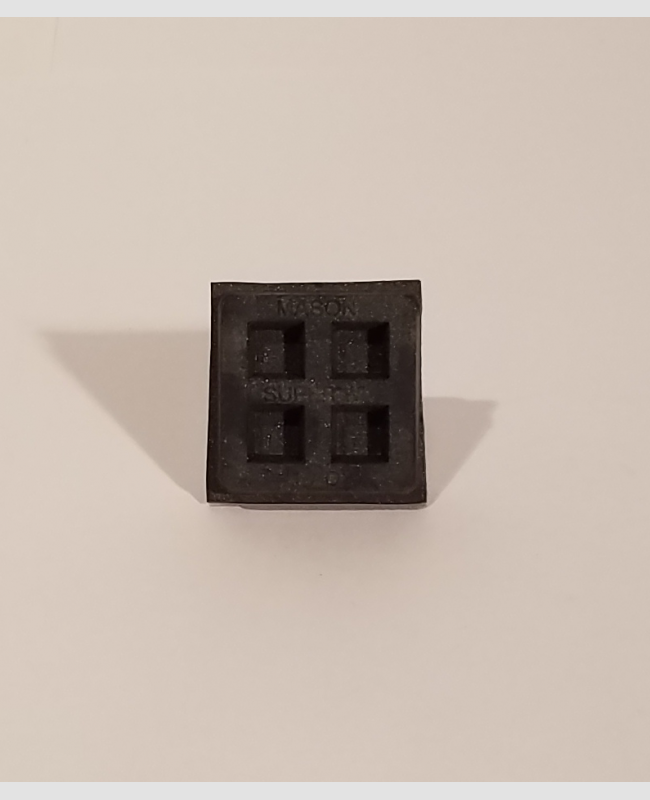

MASON-WAFFLE-PAD
MASON SUPER-W ISO PAD
Read More
MASON ND A RED ISOL
MASON ND-A RED ISO PAD
Read More

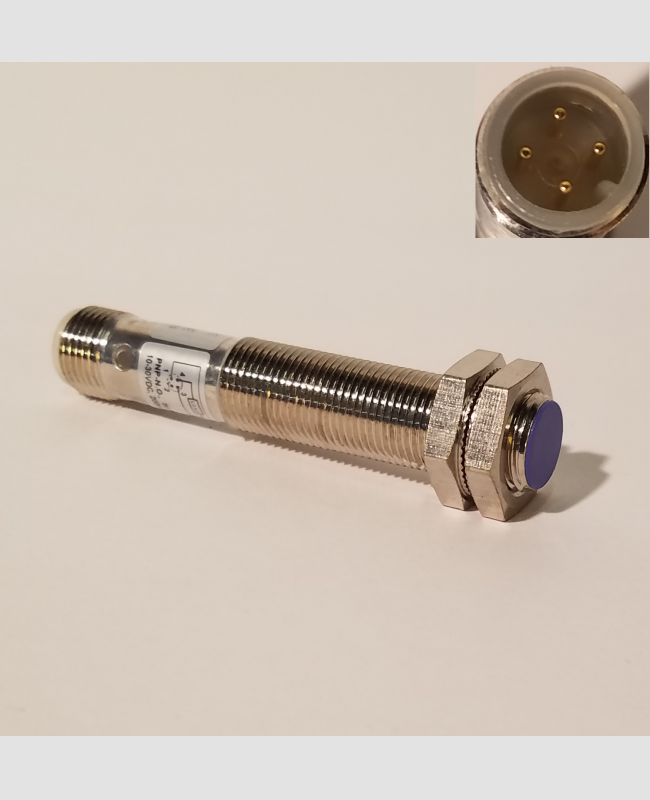

EASY-WAVE-HT-SNSR
Replacement Parts
Read More

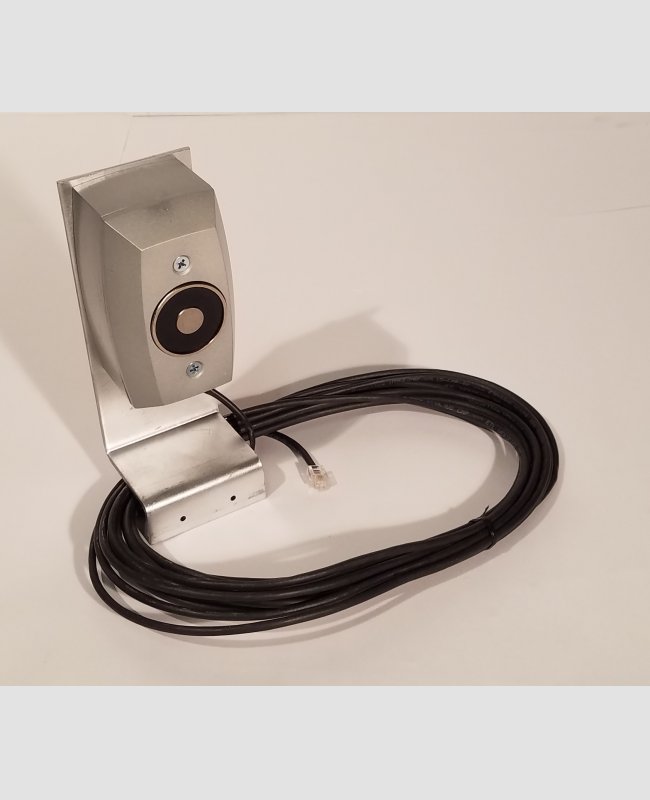

EASY-WAVE-MAGHOLD
EASY WAVE MAGNETIC HOLD OPEN
Read More

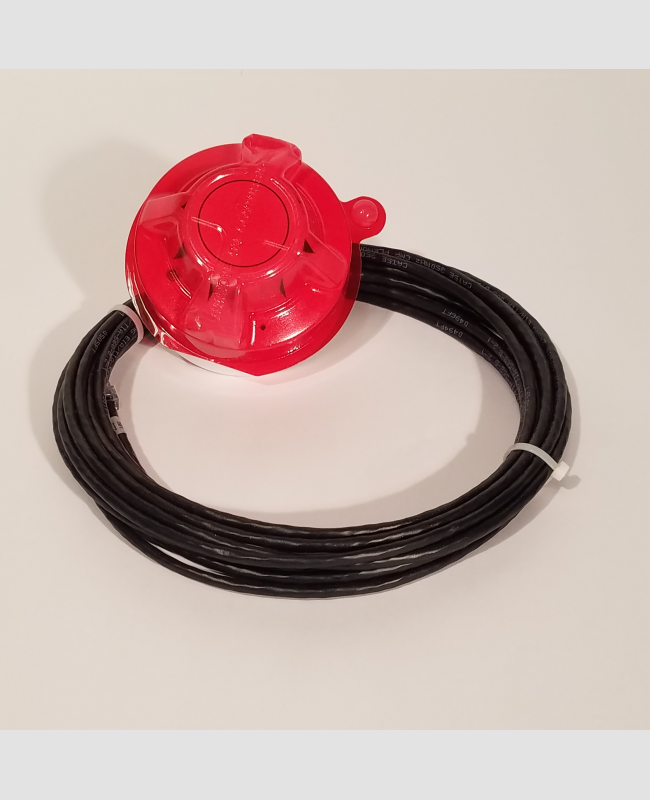

EASY-WAVE-SMDET
EASY WAVE SMOKE DETECTOR
Read More
120V-SMDET
120V SMOKE DETECTOR
Read More
HOPPER-DOOR-LATCH
Replacement Parts
Read More
120V-SMDET-RELAY
120V SMOKE DETECTOR RELAY
Read More

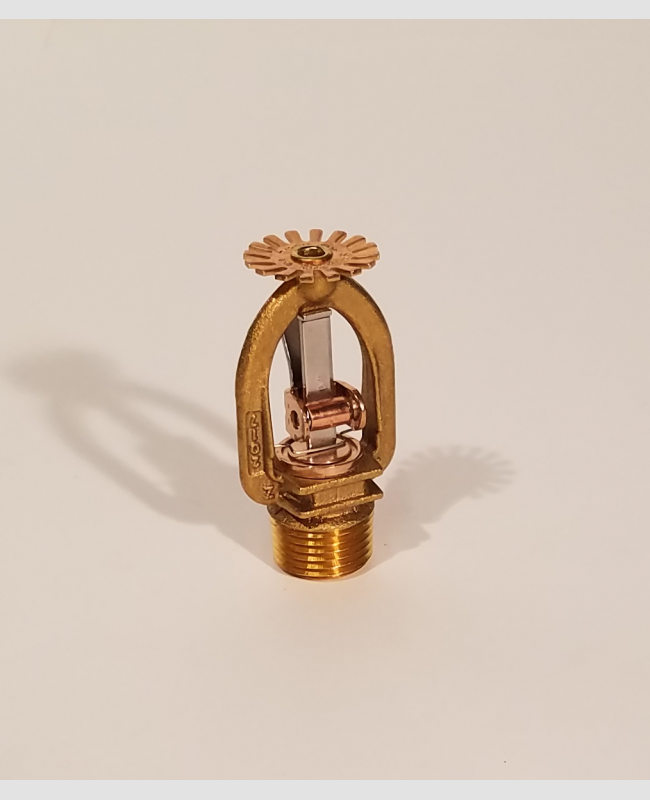

TYCO-SPRNKLR-HEAD
TYCO SPRINKLER (1/2 inch)
Read More

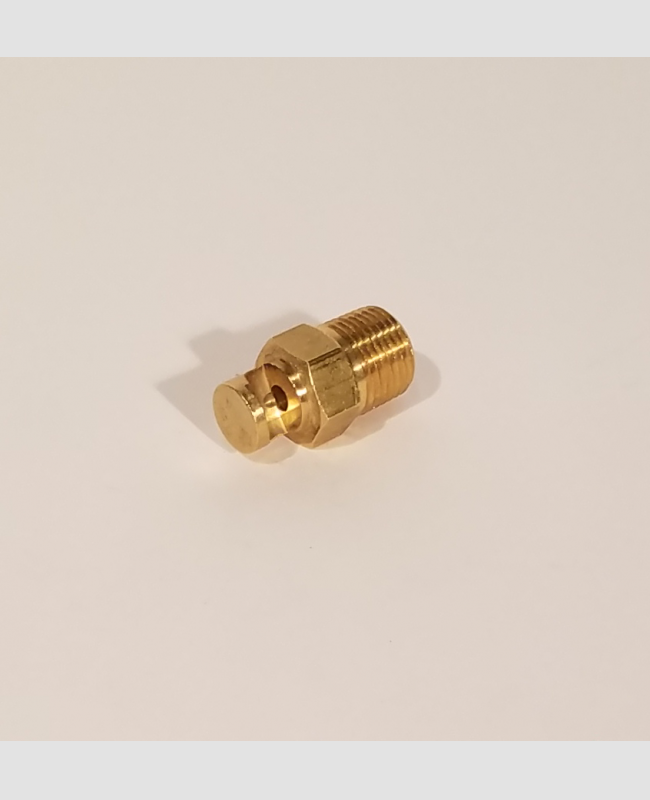

HALFINCH-BR-FL-HEAD
BRASS FLUSH HEAD -1/2"
Read More
34INCH-BR-FL-HEAD
BRASS FLUSH HEAD - 3/4"
Read More
Download Specifications
Click the Specification you would like to download, the specs are PDF Files.
Instructional Videos
Pneumatic Door Chute System - Features and Functions
The Century Chute "Pneumatic Door Chute System - Features and Functions" training video, provides an overview of trash chute operations, describes the intake door user interface and recommends waste disposal guidelines to keep your chute system operating smoothly.
Click Here To View More
Easy Wave Pneumatic Door - User Interface and Operations
The Century Chute "Easy Wave Pneumatic Door - User Interface and Operations" training video, describes the intake door user interface and provides instructions to open an Easy Wave pneumatic door.
